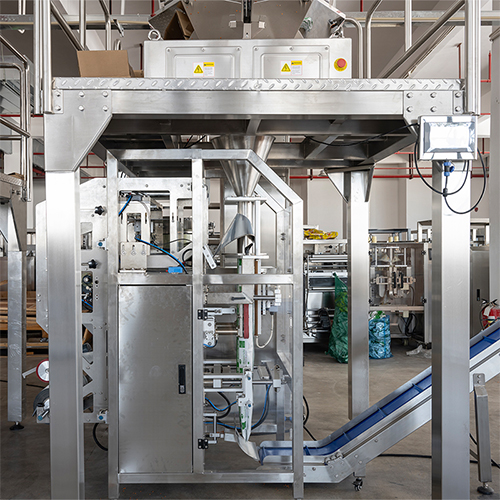

Multihead weigher automatic vffs packaging machine set up for gusseted coffee bag production

Coffee Beans Bag Packing Machine for Gusseted Bags with Degassing Valve

Product Code: UMEO-520D

Key Features:

Coffee bean VFFS packaging machine with degassing valve and gusset bag capability
Equipped with degassing valves to release CO2 from fresh coffee beans
Creates airtight gusset bags that preserve coffee aroma and freshness

Description

Gusseted Bag with Degassing Valve Coffee Beans Multihead Weigher Packaging Machine

Automatically for feeding, weighing, forming, degassing valve punching, filling, output conveying.
Imported PLC with colorful touch screen control system,multilingual function,easy to operate.

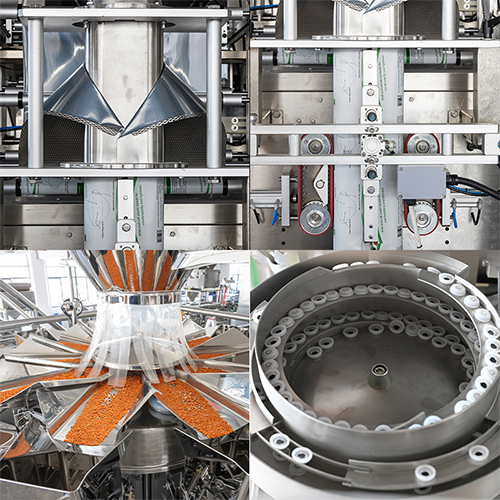

Servo motor for film feeding,photocell eye tracking for precise positioning.
Intelligent temperature control system,automatically rectification function.
Multifunctional alarm function to reduce wastage,safe operation.

Raw coffee beans feedstock designed for use with any advanced coffee bag packing machine setup

Bulk puffed snacks feedstock applied in an automatic vffs packing machine workflow

Diverse mixed beans supply matching a standard granule packing machine technical requirement

Advanced coffee bag packing machine processes fresh roasted coffee beans with degassing valve

Multihead weigher packing machine handles delicate puffed snacks, ensuring secure degassing valve integration

Reliable granule packing machine seals varied mixed beans into bags, complete with standard degassing function

Video

Specification

Model	UMEO-520D
Bag Length	80-350mm
Bag Width	80-250mm
Film Width (Max.)	520mm
Packing Speed	600-1500packet/h
Gas Consumption	0.8 m³/min
Power	7.0 KW
Voltage	220V/380V, AC 50/60HZ 1P/3P
Bag Type	Pillow bag,Gusseted bag,Quad seal pouch
Roll Film	Extermal Dia.≤340mm, inner dia.≥76mm
Working Pressure	0.8 MPa
Net Weight	1100 KG
Packaging Film	Laminated film (OPP/CPP,PET/LDPE,BOPP/ALU/LDPE,NYLON/PE etc)
